Ford F-250 1973 - 2010 HD
- Kit ID: 3611-LHD
- Installation Manual
Each kit is tailored to your specific vehicle
Roadmaster Active Suspension is uniquely assembled for your model and typically ships within 1-2 business days! Roadmaster Active Suspension is the only suspension upgrade on the market that adds strength to your rear suspension, provides same as or better than stock unloaded ride quality and doesn’t require readjustments or maintenance.
Roadmaster Active Suspension kit comes fully assembled out of the box and ready for installation. Follow your application guide that is in the box and you will be ready to test your Roadmaster Active Suspension after an installation as simple as 45 minutes! If you are not satisfied with your Roadmaster Active suspension we offer a money back guarantee.
- Reduce Rear Squat & Bounce
- Improve Stability
- Improve Roadhandling & Stability
- Make RVing Safer
- Reduce Axle Wrap
- No Readjustments or Maintenance
Roadmaster Active Suspension kits are warranted for 5 (five) years from date of purchase, against defective components and materials. However, kits cannot be warranted if any changes or modifications have been made to any rear leaf spring suspension components on the vehicle you intend installing the kit on.
If you would like to complete our online Warranty Registration, please click here.
Roadmaster Active Suspension provides a 30 day money back guarantee, from date of purchase. However should the kit be returned, it must be re packed in the original packaging with all components included. On orders with free shipping (where shipping was paid for by Roadmaster Active Suspension), refunds will reflect the invoiced amount, minus that shipping cost billed to us by our shipping provider. In addition, the customer will be responsible for the return freight charges.

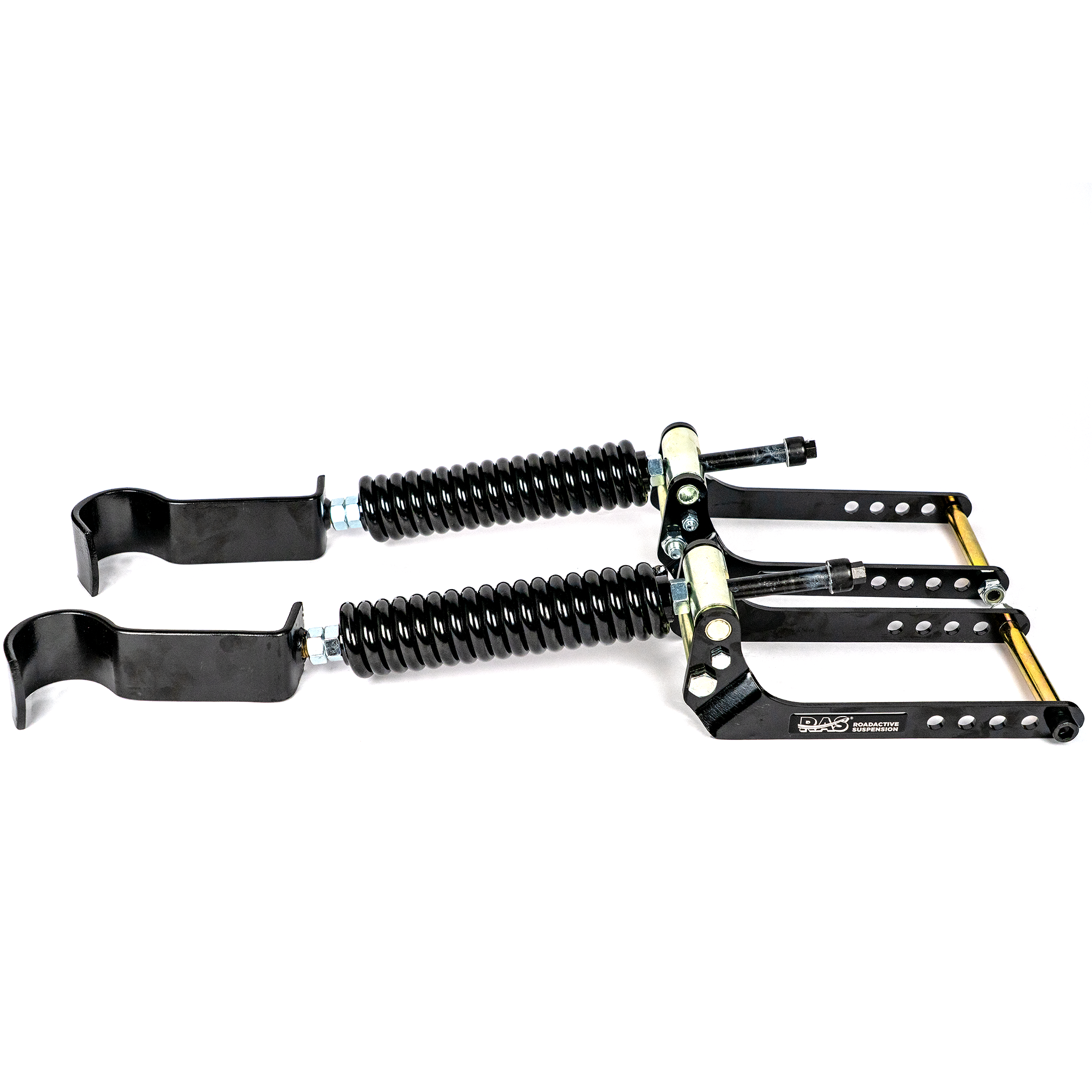

Roadmaster Active Suspension (RAS) kits consist of a set of two very powerful, variable rated coil tension springs that when installed support and assist the rear leaf springs by holding them in their (Original designed) bowed position. When downward strain from load or vehicle weight shift is applied to the leaf springs, the stabilizing action of RAS comes into action immediately absorbing the force of the load. The greater the strain, the more corrective counter assistance force is applied from the RAS spring.
While RAS is geared towards significantly improving performance and overall towing experience & capability without hassle (by improving ride quality, significantly reducing sway, bounce and body roll), one of the most noticeable visual benefits is reducing rear squat when towing or hauling. Because the RAS works in conjunction with the existing leaf springs (that vary greatly in rating), the amount the RAS reduces rear squat will vary as well. Generally, a pickup owner experiencing 2-3 inches of squat should expect the RAS to keep that truck level or extremely close to level. For vehicles experiencing over the 2-3 inches of squat, RAS will still help and an improvement should still be seen, but remaining perfectly level should not be expected.
Our kits work great in conjunction with a Weight Distribution or Equilizer Hitch. If the WDH/Equalizer has been in use prior to installing RAS, a slight readjustment on the WDH/ Equalizer to add a bit more weight towards the rear of the truck (back onto to the hitch) is often optimal.
Roadmaster Active Suspension kit specs are based off of stock vehicles, without any aftermarket suspension modifications. From a fitment standpoint, RAS generally fits lifted trucks without an issue. An issue may arise if the lift block is fabricated in an odd shape that interferes with our axle connecting brackets, or if it's a complete suspension swap. Before ordering a RAS for your lifted or leveled truck, be sure to check your suspension to look for possible issues as described. If there appears to be an issue as described in either one of these two instances, email us at sales@activesuspension for assistance and further instruction.
Provided fitment is not an issue, RAS works great on lifted and leveled trucks from a functionality standpoint, greatly reducing squat caused by towing, significantly improving stability, excessive bounce and any axle wrap/wheel hop.
Just call our Technical Support line Toll Free at 1-800-398-5036 and a member of our support team will answer all of you questions.
RAS is very easy to install and should take about an hour. Fully assembled out of the box with a set of easy to follow step-by-step fitting instructions, complete with pictures! For ease of install you will require a two post auto lift and standard shop tools. RAS can also be installed on the ground using a trolley jack and jack stands.
Yes. RAS improves traction by reducing axle wrap and the resulting wheel hop. RAS absorbs the added force of increased torque thereby limiting the S-Curve twisting and subsequent release common to leaf springs. Traction is now increased allowing the rear tires to transfer torque to the ground more efficiently.
Yes. RAS will greatly reduce body sway and roll in cornering. Roadmaster’s powerful coil spring supports the weight that shifts onto the rear leaf spring that is taking the additional load. Holding the leaf spring in a bowed position (not allowing to flatten out) maintains a more level vehicle on turns and curves.
No. RAS will not harden ride, and in fact, will improve it. Unlike other load assisting products that resist and/or transfer load to the vehicle’s frame, RAS is unique in that it is integrated with your suspension system. The key is in the powerful, variable rated, coil springs which add strength without stiffness. They convert your PASSIVE suspension into an ACTIVE suspension system which vastly decreases rebound felt when going over poor road surfaces.
We have two options! You can go to our "Contact" page here to contact our Canadian Distributor OR purchase directly from our website. Please note that shipping costs can be quite costly when shipping direct.
While the installation of our kits are considered simple and among the easiest in the industry, Roadmaster Active Suspension dealers possess installation experience and industry knowledge for those more comfortable with professional installation. Click here to find a dealer near you.
Roadmaster Active Suspension will often work in tandem with airbags, fitment will depend on the location of the airbag in relation to where our product sits. To find out if it will work for your specific setup, please email email@example.com.
No, Roadmaster Active Suspension (and no other rear suspension helper can automatically void the factory warranty. The Magnuson Moss Act states that it is illegal for a vehicle manufactuer or dealership to void a warranty just because a part has been installed. The manufacturer or dealership may only void the warray if they are able to prove the aftermarket part caused or contributed damage to the vehicle. Even then, warranty to the impacted componenet(s) is the only portion of the warranty that may be voided. In this case, all other parts of the vehicle remain under warranty.
Yes, Roadmaster Active Suspension does typically raise the rear unloaded ride height by .5''- 1.5''. The exact amount will vary based on the vehicle, condition of the leaf springs, the kit part number and most importantly the tension set on the spring upon initial install.
